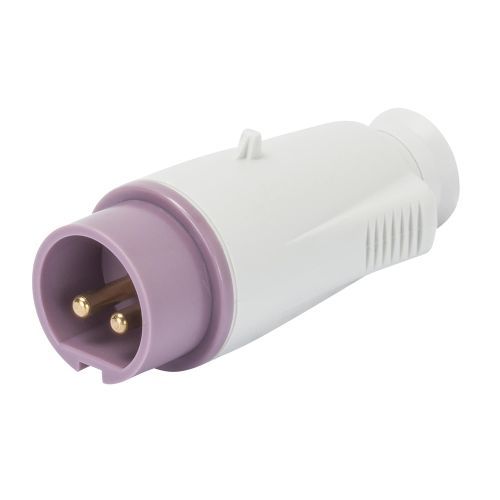

Gewiss 2 Pin Splashproof Plug 16A GW60064

IP44
Gewiss 16 Amp current rating
2 Pin
24 Volt

DESCRIPTION
Straight Plug IP44 2P 16A 20-25V 50-60HZ Violet n.r. Screw Wiring
The IEC 309 BTS range of extra-low voltage plugs and sockets for industrial applications enable machinery and devices that operate on voltages of less than 50 V to be connected. The range includes different versions – straight mobile, 90° connectors, surface-mounting and push mounting, protected and watertight.
Technical Data
Colour: Violet
Rated current (A): 16
IP degree: IP44
No. of poles: 2P
Mechanical resistance: IK08
Type: Straight plug
Rated voltage: 20-25 V
Frequency: 50 – 60 Hz
Terminal tightening capacity: 1-2.5mm² flexible cables – 1.5-4mm² rigid cables
Operating temperature: -25 +40 °C
Type of wiring: With screw
Electrocod: 2230
Glow wire test: 850 °C (active parts) – 650 °C (passive parts)
Total number of operations: > 5000
Permissible overload: 22 A
Breaking capacity at 1.1 Un: 20 A
Insulation resistance: > 10 M?
Thermo-pressure with ball: 125 °C (active parts) – 80 °C (passive parts)
