Description

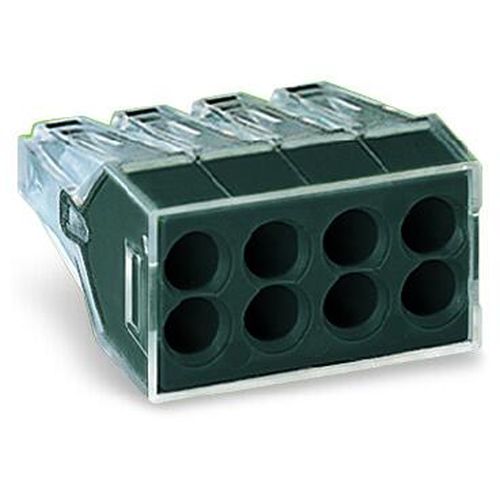

Wago 773 Series Push Wire Connector 8 Pole Grey 773-108
773-108

? 0.75mm – 2.5mm2 For Solid Conductors
? 1.5mm – 2.5mm2 For Stranded Conductors
? Strip Length 12mm
? Rating 450V/4 kV/2 24A
? Size H 13.1mm x W 24mm x D 19.5mm
? Transparent Housing
? Pack Quantity 50
? Re-Usable
? Reduces Wiring Time
? For More Information See Spec Sheet
The Wago 2273 Series Push Wire connector allows fast wiring for solid conductors safely due to the spring clamp connection. The transparent housing shows that the conductor is fully inserted within the base, the clear port shows that the conductors strip length is correct.
