Description

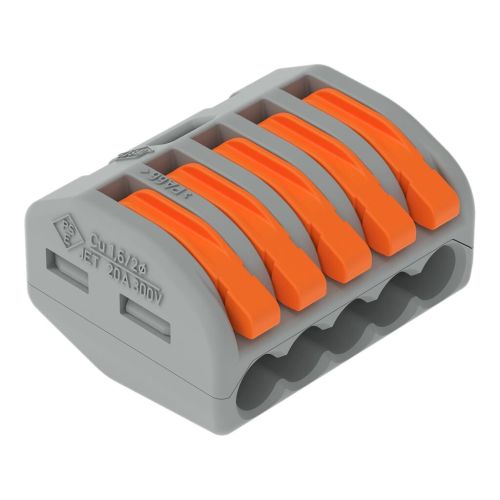

The 222-415 – 5 pole compact splicing connectors are suitable for all wire types with a wide size range of 0.14mm² to 4mm².

Proven and perfected: This cable connector is suitable for all wire types. This 222 Series model is a tool free lever operated connector for electrical installations and allows the use of solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes.

Furthermore there is an easily accessible test port, this allows you to test the connection even when installed.

The operating levers can now be opened and closed using noticeably less force the lateral hollowed-out grips provide a firm hold on the cable securing it in place.

Plastic Construction
Screwless Hold
Suitable for all cable types
Suitable for cables 0.14mm² to 4mm²

Technical Specification:
Connection Points: 5
Color: Grey
Max Voltage: 450V
Max Current: 32A
Connection technology: CAGE CLAMP®
Conductor Material: Copper
Solid Conductors: 0.2mm² – 4 mm²
Stranded Conductors: 0.2 mm² – 4 mm²
Fine-stranded Conductors: 0.14 mm² – 4 mm²
Strip length: 11 mm / 0.43 inch
Weight: 6.5g
Dimensions: W 26.6mm x H 14.5mm x D 20.5mm
Packs of 40
