Description

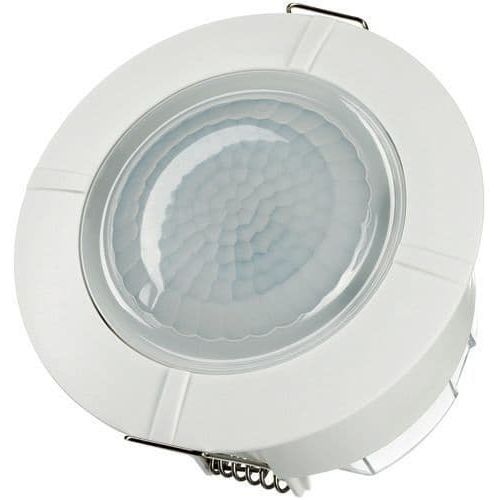

Single channel surface ceiling mount.
Switches lights on when presence is detected and to light levels (LUX) set.
360º circular detection, range up to 7m at 2.5m mounting height.
3 user friendly adjustments for Time, LUX levels and Metre range.
Timer adjustment – continuous from 5 sec to 20 minutes (up to 30 or 60 minutes with IR10 remote).
Lux adjustment – continuous from 10 to 2000 Lux.
Metre adjustment – approx (-) dia 1m to (+) dia 7m at 2.5m height.
Total switching: 1000W incandescent/halogen, 550W fluorescent/low energy.
Optional infra-red remote control for remote set-up and adjustment using part code IR-10. Also gives extended lamp ON times.
LED indication on detection and on optional remote control set-up.
Side or bottom cable entry.
Up to 400W LED (Max) lighting (Channel 1 rating only).
