Description

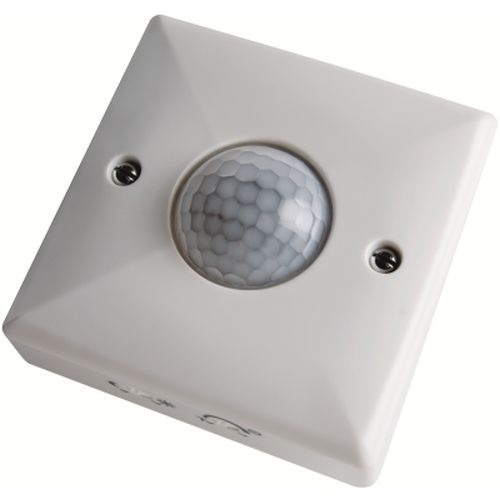

Switches lights ON when presence is detected and to light level (LUX) settings.
Ideal for energy saving installations in the workplace, corridors, offices, toilets etc.
Up to 1500W loading (6A) for incandescent, halogen, fluorescent and inductive lighting or 250W (1A) fan.
Units can be wired in parallel (not exceeding total load).
Enhanced 120° detection zone for optimum coverage.
Up to 10m detection range for motion and 5m for presence detection at 1.8m mounting height.
User-friendly adjustment for:?* Light level – 5 to 1000 LUX?* Time ON – 1 to 30 minutes.
IP55 environmental rating (internal use only).
For surface mounting on a standard BS surface mount or flush mount box (min 16mm depth).
3 wire connection.
Up to 420W LED (Max) lighting.
