Description

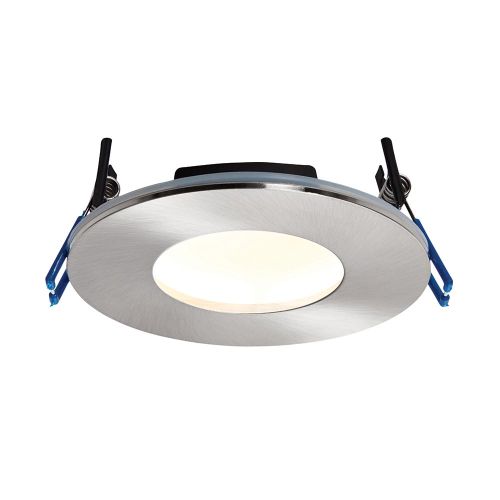

The OrbitalPlus family is a range of slimline recessed downlights which are fire rated and IP65 rated. It’s anti glare dome projects up to 460 lumens of warm or cool white light. This unique and patented design can be covered with insulation and fits into shallow ceiling voids. Supplied with a dimmable Eaglerise driver, it is available with warm white or cool white LEDs and in three finishes, satin nickel, chrome and matt white.

Dimmable
Satin nickel plate
Constructed from die cast aluminium alloy & steel

Complete with LED driver
9W LED module (SMD 2835) Warm White (Included)
K: 3000 Lm: 460 Lm/W: 51
IP65. Suitable for bathroom zone 2
Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
Fire rated to 30, 60 & 90 minutes
Proj: 2mm Dia: 110mm
Class 2
Cut hole Dia: 97mm
