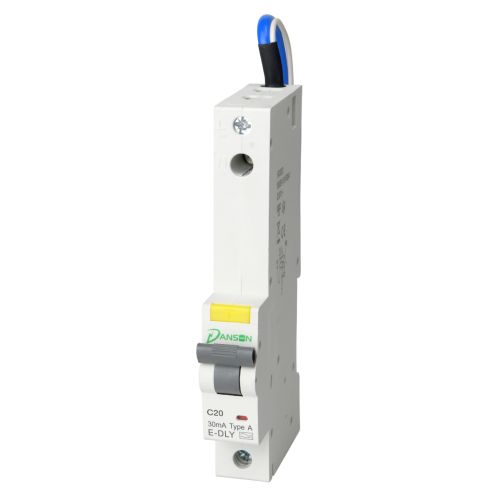

Description

High quality and reliability with functional design and easy installation
Switched both Live and Neutral
Type A for both AC and DC application
Compact size just 90mm x 18mm
Tested and Certified in accordance with IEC/BSEN61009-1
Breaking capacity: 6kA
Rated current: 20A
Number of poles: 1
RCD Type: A – Ensures tripping for residual AC currents and pulsating DC currents. Suitable for electric vehicle charging points
Curve Type: C – trips between 5-10 times full load current. Suited for commercial applications where there is greater chance of higher short circuit currents, such as inductive loads or fluorescent lighting.

Depth (mm) 18

mA 30

Width (mm) 79

Amp Rating 20

Breaking Curve C

Poles 1

Ref E-DLYC4120

Standards BSEN61009-1

RCD Type A

Short Circuit Breaking Capacity (kA) 6
