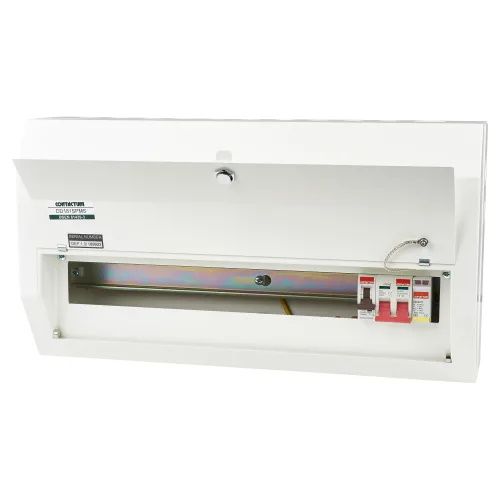

Description

ABC indicator B
Colour White
Security features optional security lock available
Total gross weight (g) includes packing 5675
Total net weight (g) excluding packaging 5669
Individual unit weight (g) 5669
Width mm 438
Height mm 260
Depth mm 130
Size/Dimensions (mm) 438X260X130
Surf area M^2 0.409
Technical
Associated standards BS EN 61439-3
Rated voltage 220-250V
Rated current 100A
Frequency 50-60Hz
Wiring system 2 pole
Surge Device Spec:
Uc – 275V
In – 10kA
Imax – 20kA
Up – =1.2kV
Green (ok) Red (replace) status indicator
Ambient operating temperature -5 to 40°C (24hour average not exceeding 25°C)
Degree of protection IP4X
Width in number of modular spacings 22
Nature of supply AC
DIN-rail yes
Extension possible yes
Type of cover steel
Type of door steel
Material housing steel
Plate thickness cabinet 1.2
Plate thickness door/cover 1.2
Mounting method surface
With mounting plate RCEB-TE-22MOD
Number of outgoing ways 18
