Description

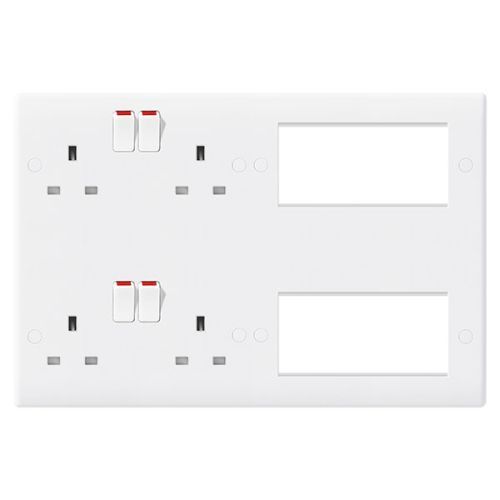

The BG Electrical Moulded 8222EM8 is a white 2x double (2x 2 gang) combination plate with double pole switches and 8 (2x 4) Euro Module slots, rated at 13A.

A combination plate, the 8222EM8 is a hugely versatile socket setup that thanks to its modern white round-edge design is suitable for an array of domestic and commercial applications. Fitted with two double pole 2 gang sockets, any appliances plugged into this socket are switchable both on their live and neutral adding a further level of security to both yourself and your circuitry. There are 8 Euro Module slots available (lined in 2 rows of 4) and therefore this combination plate has a colossal number of options available including audio, power, telephone and data. Please note – modules of mains and extra low voltage must not be fitted to the same front plate.

The 8222EM8 is simple to install and can be fitted into a HGS07/C4 47mm mounting box. It also has twin earth terminals as standard to facilitate double earth, high-integrity connections.

As per the entire 800 range of switches and sockets, the 8222EM8 comes with a 30 year warranty for peace of mind. It is manufactured to BS 1363-2 to comply with national building regulations.
Nexus Moulded Profile
Twin earth per socket fitted as standard
High integrity protective connection
Terminal capacity: 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
Minimum mounting box depth: 47mm
Manufactured to BS 1363 Part 2
