Description

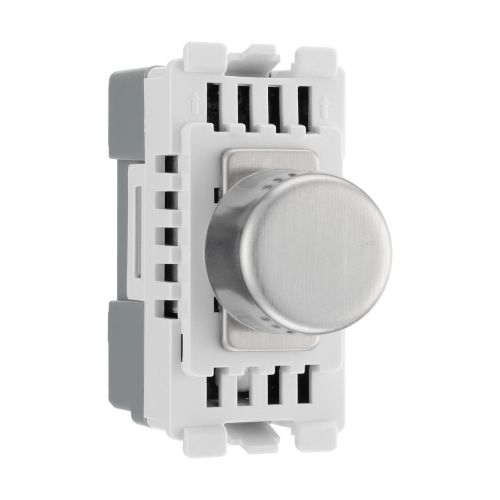

The BG Electrical Nexus Grid RBSDTR is a brushed stainless-steel 2-way trailing edge dimmer module, rated at 200W (100W for LED and CFL).

A trailing-edge dimmer module, the RBSDTR is suitable for a huge range of modern dimming solutions, whether LED, halogen, CFL or incandescent. Like all BG trailing edge modules, it has a raft of features; a soft-start to extend the life of lamps, silent operation, in-built overload protection and lower-wattage support to prevent flicker.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. The brushed stainless-steel finish has a sleek, modern look and is lightly lacquered to reduce the impression of fingerprints.

To aid installation, the RBSDTR comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.

Dimmable LED load: 5-100W
Tungsten/Incandescent load: 5-200W
Halogen load: 20-200W
Dimmable compact flourescent (CFL) load: 5-100W
Minimum mounting box depth: 25mm
Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
Manufactured to BS EN 60669-2-1
Brushed Steel finish
