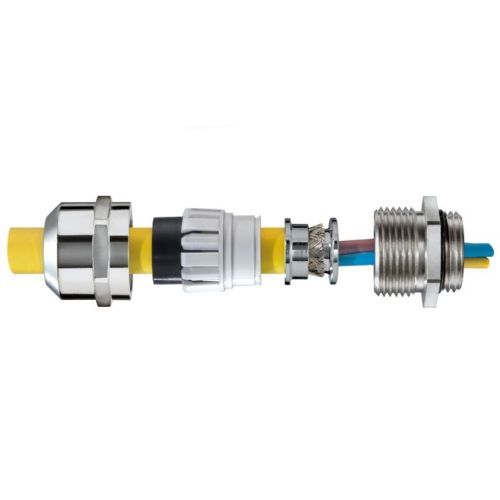

WISKA SPRINT 10065019 EMSKV 25 EMV-Z IP68 25mm SY and CY Gland, suitable for cable diameter 9 – 17mm
Skip to the end of the images gallery
Skip to the beginning of the images gallery
Details
WISKA SPRINT 10065019 EMSKV 25 EMV-Z IP68 25mm SY and CY Gland

Easier to install
IP 68
Wide clamping range
Strain relief
EMC earth protection
Material cable gland Brass nickel-plated
Material sealing gasket EPDM
Material clamping cage Polyamide
Material earthing insert Brass chromium-plated
Temp. range min -40 °C
Temp. range max 100 °C
Intermittent temp. range 120 °C
Protection class IP 69K, IP 68, 5 bar 30 min
Thread type M
Connection thread size D 25
Lead 1,5
Length screw-in thread L 7 mm
Cable diameter min 9 mm
Cable diameter max 17 mm
Cable Diam. below cable shield 16 mm
Cable Diameter UL 10,8 mm – 15,8mm
Key width SW 29 mm
Collar diameter (E) 32 mm
Total length TL 33 mm – 42 mm
Surface Nickel-plated
Order no. nickel-plated 10065019
Type EMSKV 25 EMV-Z
