Description

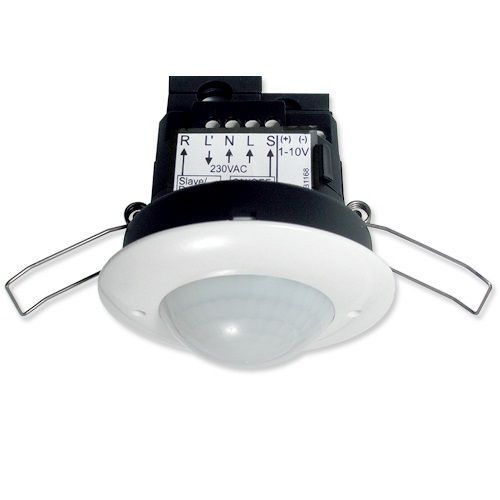

Occupancy detector for daylight-dependent lighting control
1 – 10 V interface for controlling analog, dimmable ballasts
Additional switching channel for the following function:
Cut-Off (complete ECG switch-off to avoid standby losses).
Orientation light function
Manual switching and dimming via push button possible
Version as master device
Detection area can be extended with slave devices
Additional functions can be set up using the optional remote control.
Relay with tungsten pre-make contact, optimised for LED loads
Avoidance of standby losses of the lighting system in accordance with EnEV DIN V 18599-4
Application examples:
entrance halls, corridors/hallways, small offices, open-plan offices, conference rooms, classrooms/seminar rooms

Voltage:
110 – 240 V AC 50 / 60 Hz
Dimensions:
FM= Ø 98 x 65 mm
FC= Ø 80 x 85 mm
SM= Ø 98 x 47 mm
Power consumption:
approx. 0,5 W
Detection area:
horizontal 360° (Ceiling mounting)
Range:
max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement):
78 m² / 2,5 m mounting height
Mounting height min./max./recommended:
2 m / 5 m / 2,5 m
Degree / class of protection:
FM= IP20 / Class II
FC= IP20 / Class II
SM= IP20 / Class II
Impact strength:
SM= IK05
Ambient temperature:
-25 °C to +50 °C
Housing:
polycarbonate, UV-resistant
Channel 1 (lighting control)
Switching power:
2300 W, cos f = 1
1150 VA, cos f = 0,5
300 W LED, minimum runtime > 5 min
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact:
1x µ-contact, NO contact with tungsten pre-make contact
DIM output:
1-10 V DC, up to 50 ballasts
Follow-up time:
1 min – 30 min
Brightness set value:
10 – 2000 Lux
