Description

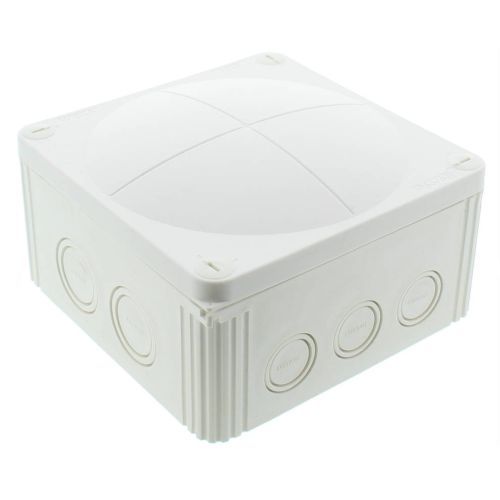

The Wiska 1010/5 Junction Box in white is ideal for both indoor and outdoor electrical connections.

IP66 Rated Connection Box, protected against dust and powerful water jetting with membrane use, IP67 rated with knockout entry & ESKV cable gland.

The WISKA COMBI with its unmistakeable bellied lid provides the utmost in visual and functional perfection. Now you can install with system AND with style.

Known to save up to 30% on labour costs.
10% more room inside, thanks to the bellied cover
External box dimensions of 140mm x 140mm x 82mm.
Solid Black Impact Resistant Thermoplastic 2 Mold Housing.

Fast Cable Entry via Soft Sealing Membrane. Threaded knock outs. No locknuts necessary.
10 Gland entries capable of taking flexible conduit glands on each side (5xM25/32, 2xM20, 3xM20/M32.
4 entries in the base (2xM25/32, 2xM20/25).

Material made of Polypropylene, reinforced glass fibre; Sealing of thermoplastic elastomere and Terminals/poles of 10 mm²

Captive and Rust-Free, Quick-Release Lid with Plastic Screws closing the box with a Quarter Turn.
Weather proof, resistant to ultraviolet, shatter proof and impact resistant .

Mounting clip for snap-on fixing or via 2 internal openings outside of the sealing area.

Comes complete with a 5 way loose connector and External Fixing Bracket.

Flame retardant and halogen free. Protection class to EN 60 529: IP 66. Flame protection: Glow wire test 750 C acc. to EN 60695-2-11
Temperatures during installation: -5°C to 60°C. Temperature range of material: -30°C to 100°C, intermittent up to approx. 120°C. Voltage Rating: 400 V
